excavator
-
-
Overall Specifications Arm Engine 8 to 40 BHP Bucket Capacity 50 kg / 0.05 cu. mt. Starting System Self-start by ignition switch. Arm Radius 3.25 mts. Suspension Hydraulic Shock Absorbers &
Leaf Springs on both Axles.Arm Movements Hydraulically with 4 Cylinders Chassis M.S. Weldable form ISMC-100 Section. Arm Slewing 65 degrees Clutch 11 inches dia. single dry type. Pumps 2 nos. Gear Box 3 Forward & 1 Reverse Operating Pressure 120 Bar Unladen weight 3500 Kgs. Control Valve 10-bank; Joy Stick Control for 4 -banks , Imported Ground Clearance 220 mm. Out Riggers 2 nos. in the front & 2 in the rear Turning Radius 3995 mm. Lateral Box Stroke 900 mm. Tyres Front & Rear - 7.00 X 15 Steering Front Axle, Worm & Roller type Road Speed Max - 13.5 Km / hr Brakes Foot Operated-Hydraulic for front & rear wheels, Hand brake for parking. Rear Axle Full Floating with Hypoid Gears. Control Car Type Dimensions Width : 1825mm; Length : 4350 mm
Height : 3000 mm.

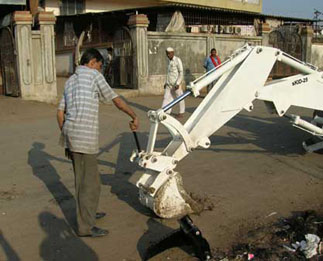

The arm can also be fitted on vehicles like Jeep, Tempo etc
